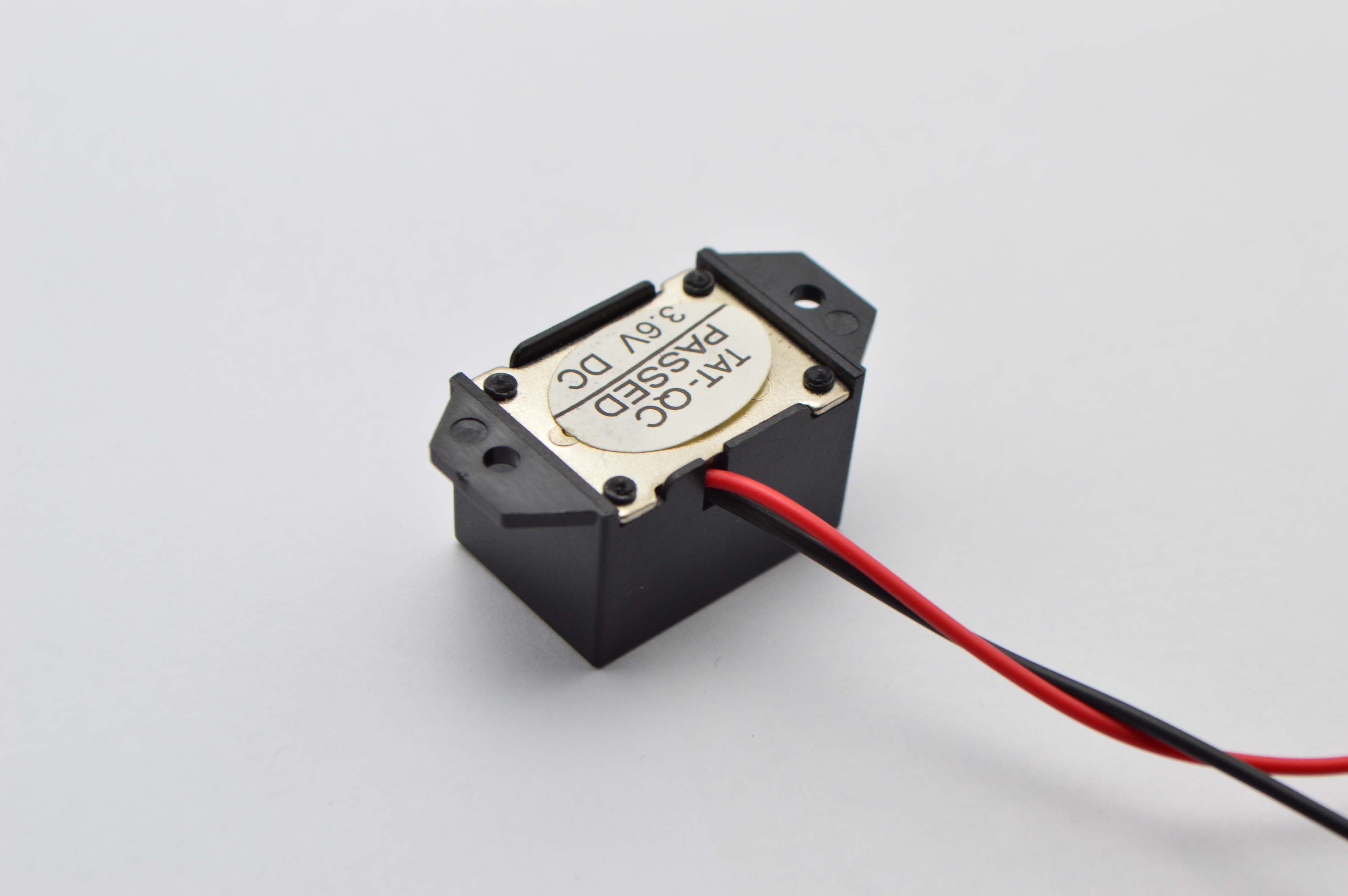

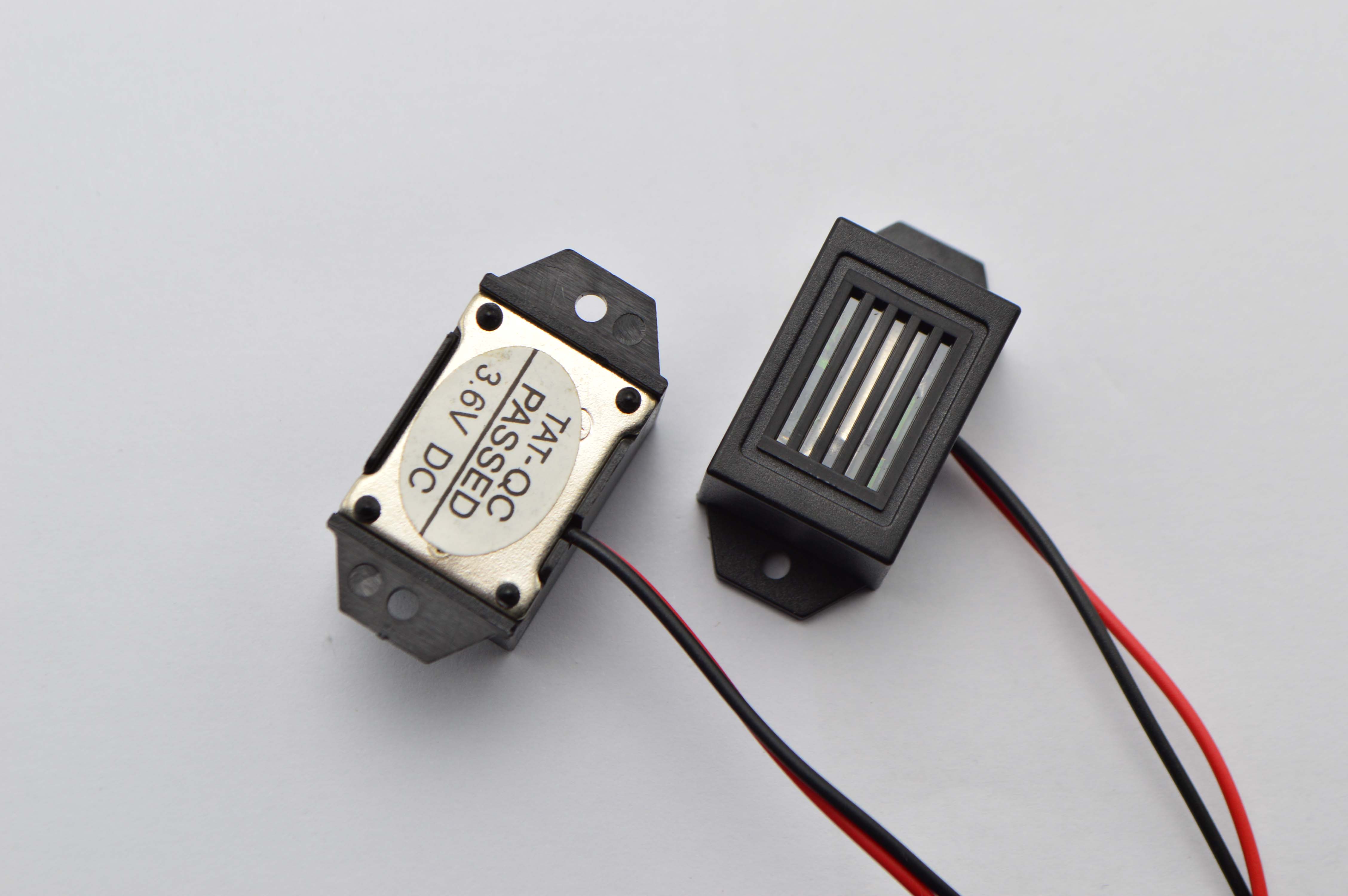

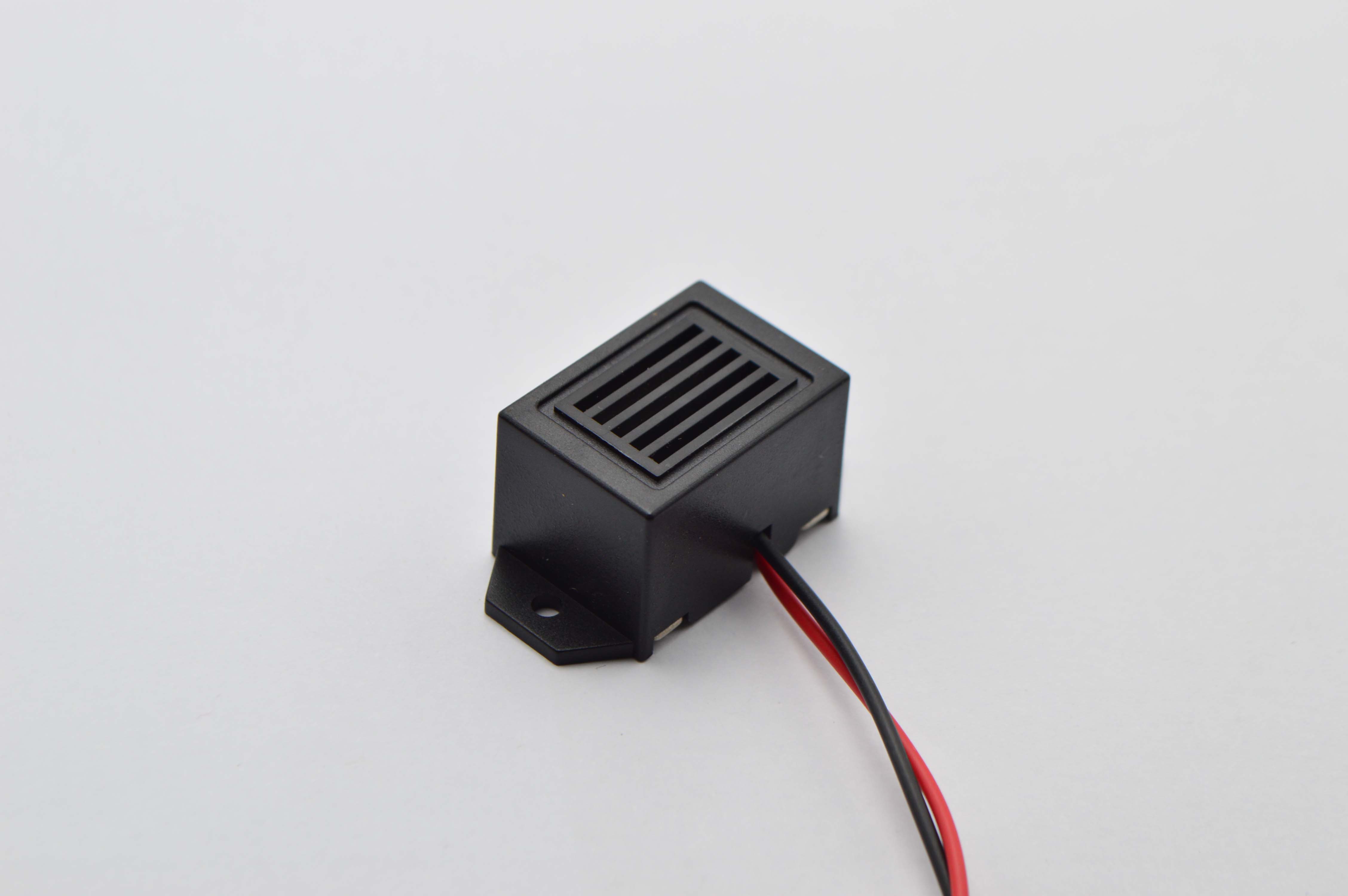

BE2316W
1. SPECIFICATION
Mechanical Buzzer
1 | Dimension | 23.5×16.7×15.4 |
2 | Net Weight | Approx2.8 g |
3 | Rated Voltage | 6VDC |
4 | Operating Voltage | 3～8 VDC |
5 | Rated Current | Max. 40mA ,at 6VDC |
6 | Sound Output | Min. 85dB,at 6VDC,10cm |
7 | Oscillating Frequency | 400±100Hz |
8 | Operating Temperature | -20℃～+70℃ |
9 | Store Temperature | -30℃～+80℃ |
10 | Lead Wire | L1=115.0±5.0,Φ=1.2±0.1mm |
Dimensions Unit: mm
.png "1(11).png")
*Unit: mm; Tolerance: ±0.5mm Except Specified
